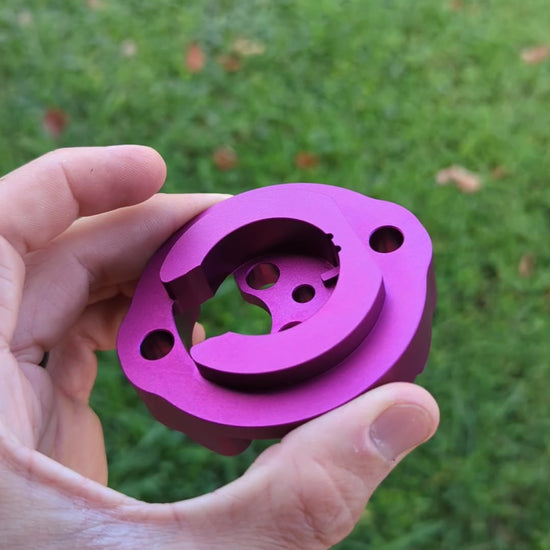

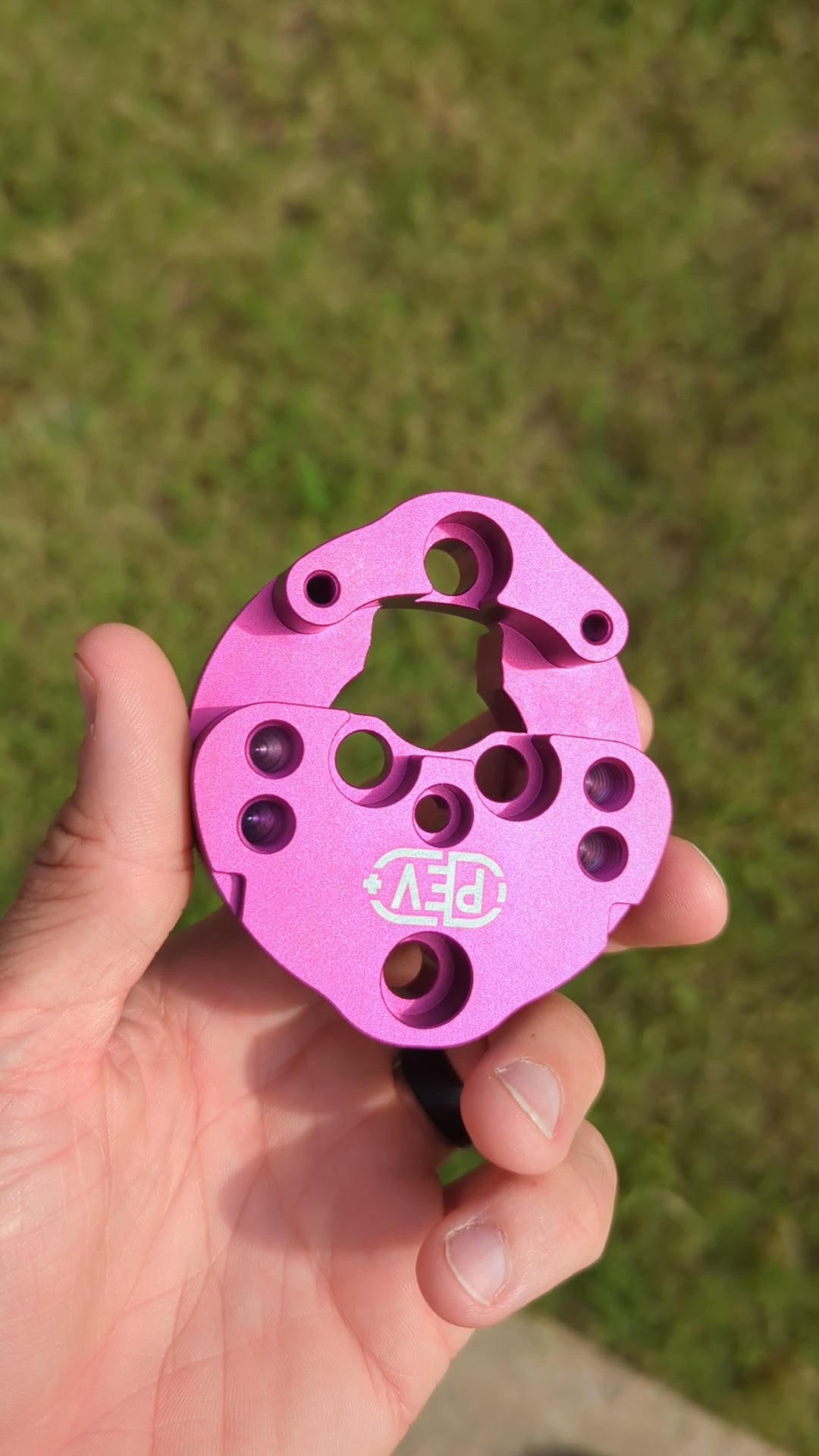

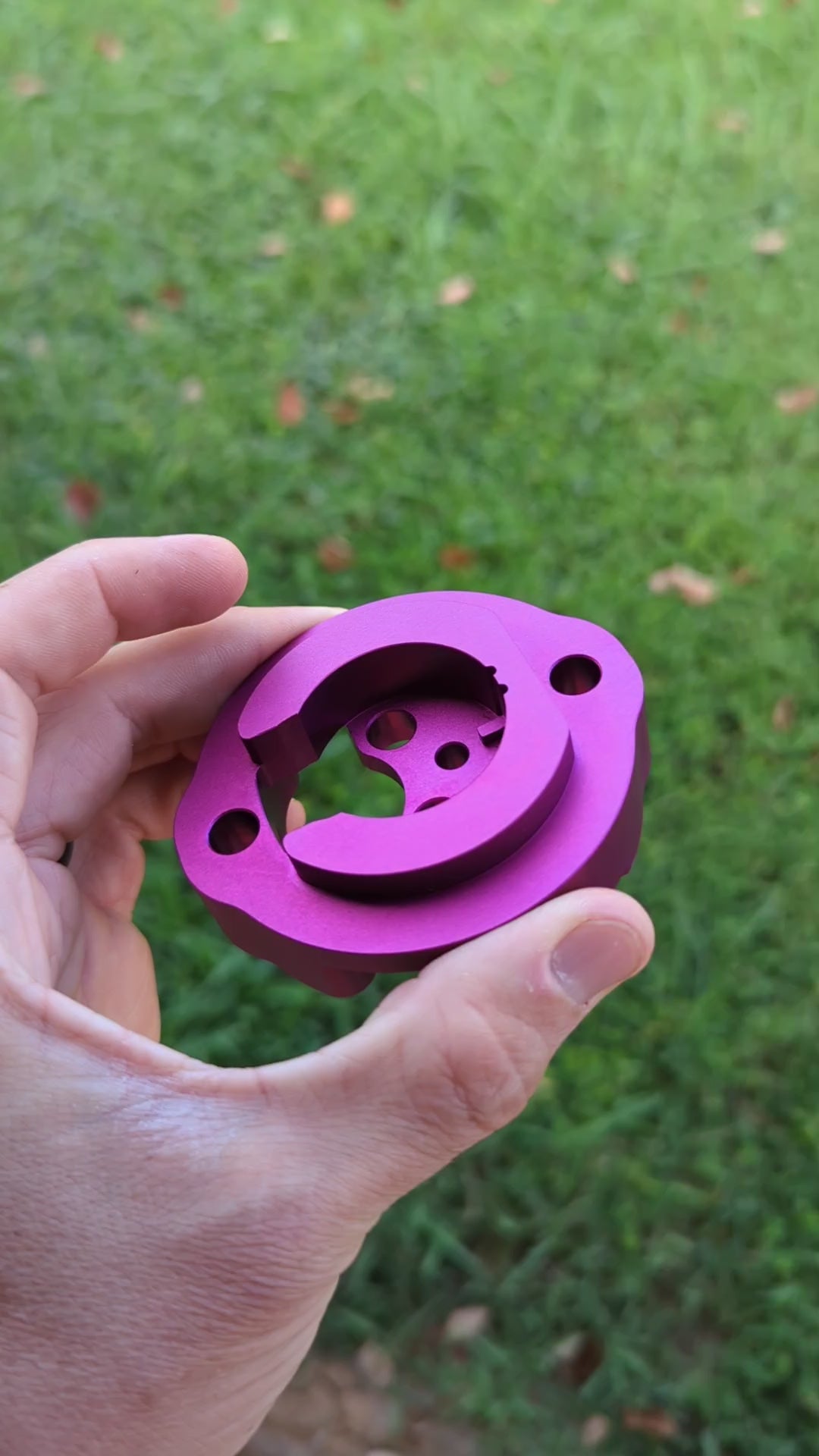

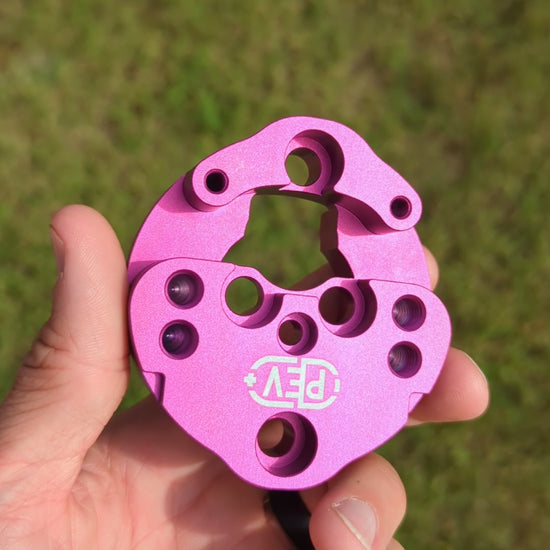

Versa Blocks

*Color choice only affects the actual vBlocks. All adapters are anodized black.*

One Block to rule them all, one block to find them, one block to bring them all and in the darkness bind them. - LoTB

Having trouble picking which axle blocks to use? Well, good news! This system is designed to work with all popular axles on both XR and GT with the possibility of supporting XRC and GTXL rails in the future with an additional adapter plate.

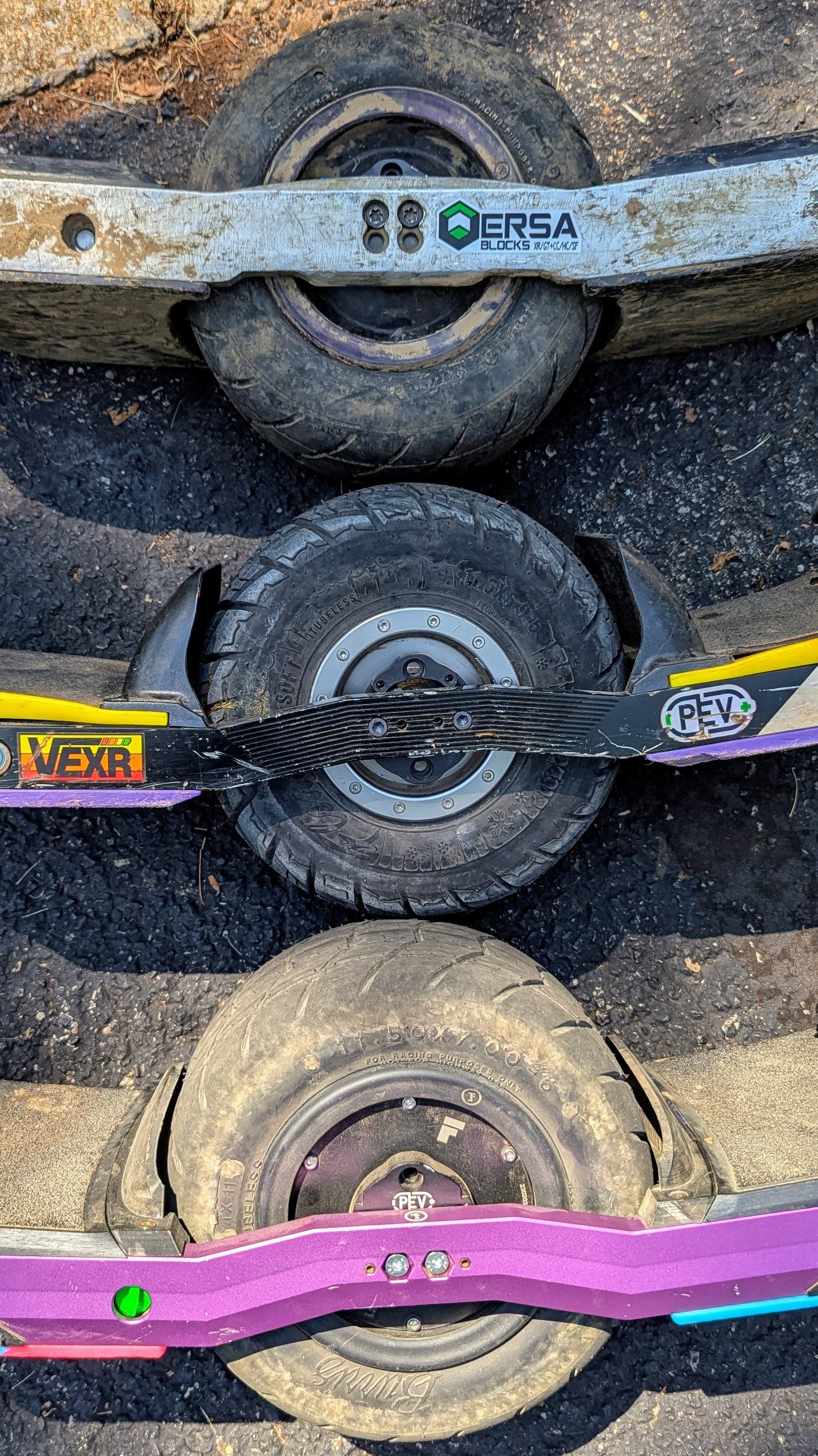

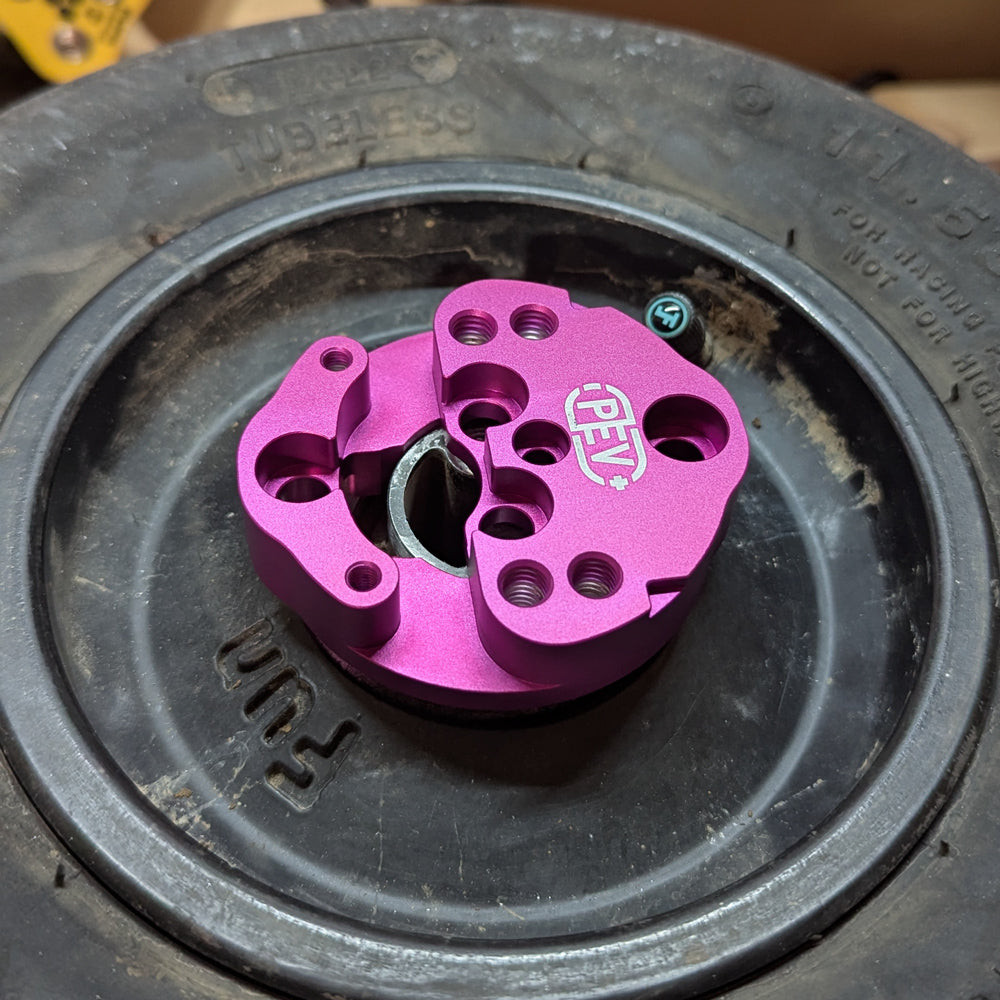

The perfect axle carriers for those who have multiple setups or those who just want the future flexibility! Think of the combinations! GT axle on XR, SuperFlux on GT, Cannon Core on XR, etc!

I have a few different boards and I have all 3 common motors (SF/CC/HC). I got tired of having to use different blocks for each setup. I wanted something that would work no matter what, so I made this block for me just as much as I made it for you.

This also means you can buy your axle blocks before you've even decided on which motor you're going with for your build! If you decide to swap motors later, you can keep using the same axle block system.

Acronyms:

• GTHA = GT Height Adapter
• XR-HC = XR HyperCore (Axle/Stator)
• GT-HC = GT HyperCore (Axle/Stator)
• CC = Cannon Core (Axle/Stator)
• SF = SuperFlux (Axle/Stator)

Features:

• Compatible with all common Axles (XR-HC, GT-HC, SuperFlux, & Cannon Core)
• Compatible with both XR and GT platforms (rails)
• Compatible with 5 inch wheels (TFL MTE/TR)
• 3 height options on both XR and GT. (Lowered/Stock/Lifted)
  • Height adjustment amount is 10.4mm (0.41 inch)
• Ability to easily drop the motor when configured for standard height on GT. We use a separate plate for standard height on GT, which allows dropping the motor out of the rails easily. (*Height adjustable option on GT still requires the removal of 1 rail to install)
• The GT height adjustment plate features 4 screws between the plate and the axle block, instead of 2, for added strength and stability.

What is NOT included in any of the kits:

• GT Outer Axle Screws:
  • Stock GT Axle screws will work in most configurations, but If you are going to be running the SuperFlux or XR-HC axle on GT, we recommend picking up some extended GT axle screws. Especially if you are a rider who frequently rides trails or likes to do drops. We have some available here: GT Extended Axle Bolts

Tools needed for Installation:

• Allen wrenches (Standard and Metric)
• Blue Loctite or Vibratite thread locker
• TP45 (GT/GTS Only)

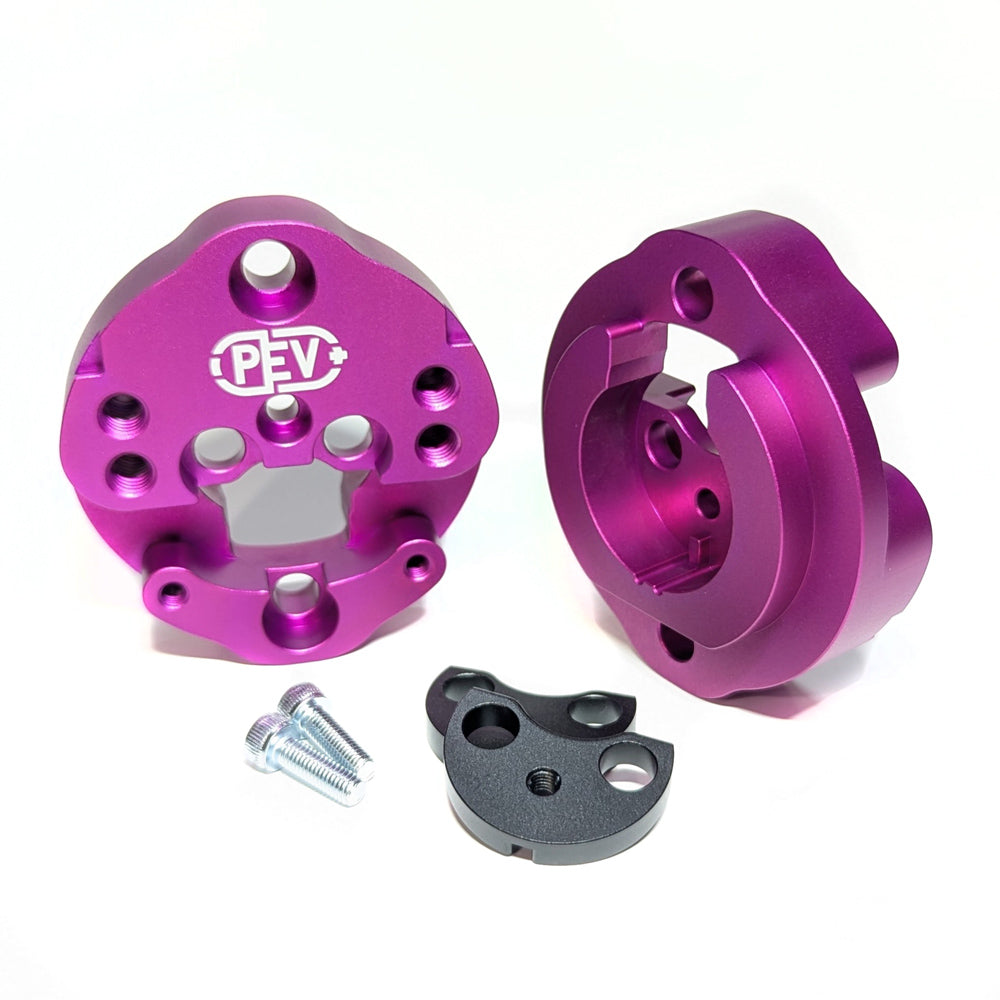

What is included in the 'Base Kit (XR Only)':

• 2x Versa Block (vBlock)
• 2x Axle Adapter for SuperFlux/XR-HyperCore
• Fasteners:
  • 2x Axle Adapter Screw (M5X0.8x16)
  • 4x Cannon Core Axle Screw (M8x1.25X25)
  • 4x GT HyperCore Inner Axle Screw for XR & GTHA (M8x1.25x20)
  • 4x SuperFlux/XR-HyperCore Inner Axle Screw (M8x1.25x25)
  • 4x XR Outer Rail Screw (5/16-18x3/4)

What's included in the 'GT Adapter Kit (No vBlocks)':

• 2x GT Standard Adapter Plate
• 2x GT Height Adapter Plate
• 2x GT Cannon Core Standard Height Axle Nut
• Fasteners:
  • 4x GTHA Rail Screw (M8x1.25x12)
  • 4x GTHA Plate Screw (Small) (M5x0.8x16)
  • 4x GTHA Plate Screw (Large) (5/16-18x5/8)

Product Weights:

Weights in the table below are for single items. You would double it for a set.

Assembly Drawings:

Drawings showing how to assemble each configuration can be found at the google drive link below:
Google Drive - Assembly Drawings

Detailed How To video with Chapter Markers:
