BPK for Cannon Core (Bearing Puck Kit)

A capable, yet affordable, kit for swapping the bearings on a cannon core motor. As someone who often works on boards I wanted something a little better than a simple puck, so I designed this kit. The press puck for seating the bearings, the extractor ring for pushing the bearings out, the catch clips to catch the bearings when they are pushed out, and a centering pin that should fit most common presses.

*I still recommend packing the hub with either rags or using a motor sleeve when the bearings are extracted to protect the magnets for ultimate protection.

The kit includes:

• Press Puck
• Extractor Ring

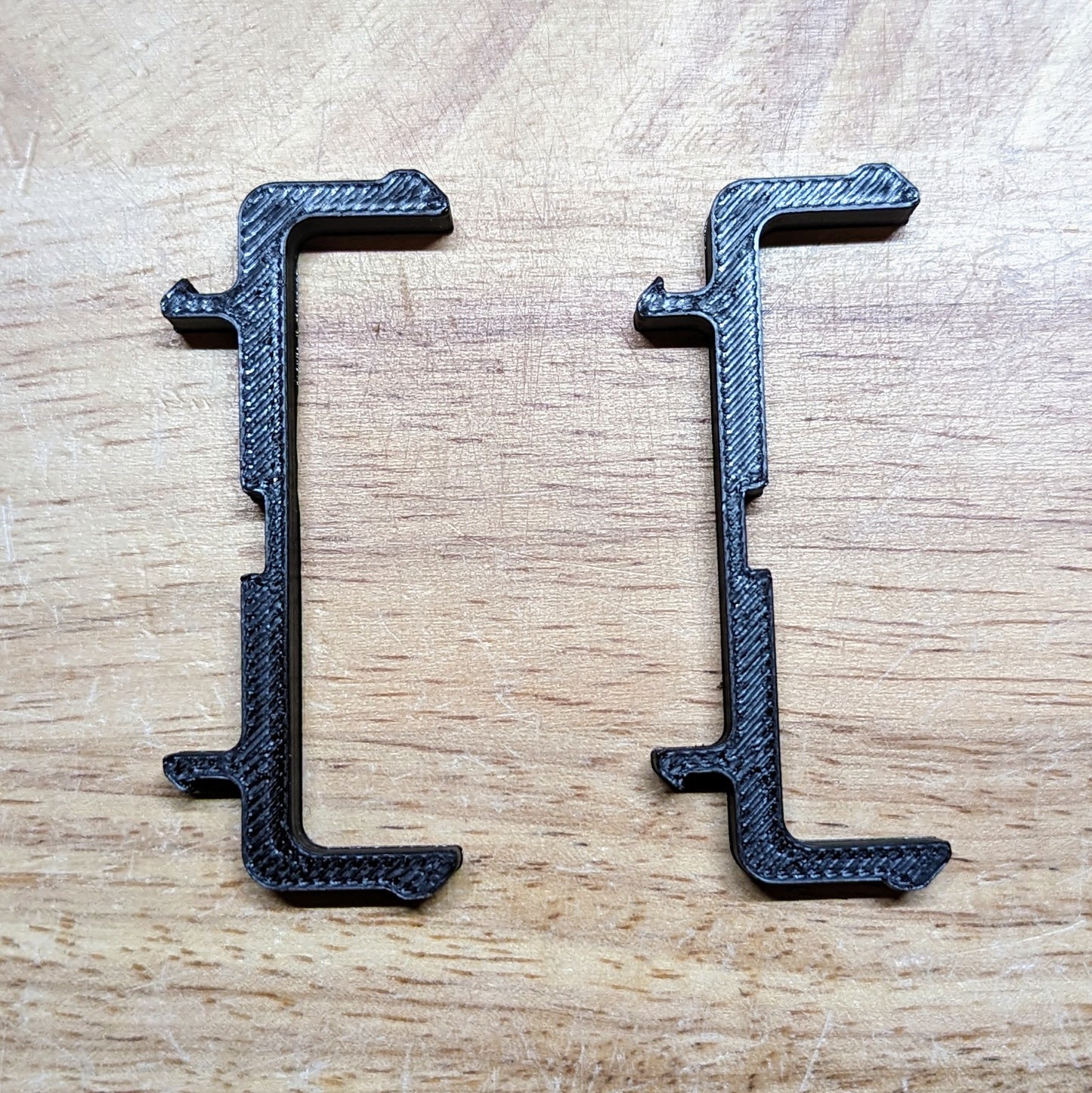

• Two sets of Catch Clips (2x Bottom, 2x Top)
• Centering Pin

Bearings not included, but you can purchase them using the link below:
Cannon Core SKF Bearings

Additional sets of catch clips can be purchased by choosing that option.

The sleeve for Cannon Core can be printed using the Printalbes link below.

If you are located outside of the United States, or would rather print this item for personal use only, you can find the model over on Printables using the link below:
BPK for Cannon Core (Bearing Puck Kit)
