SMC Diode Solutions

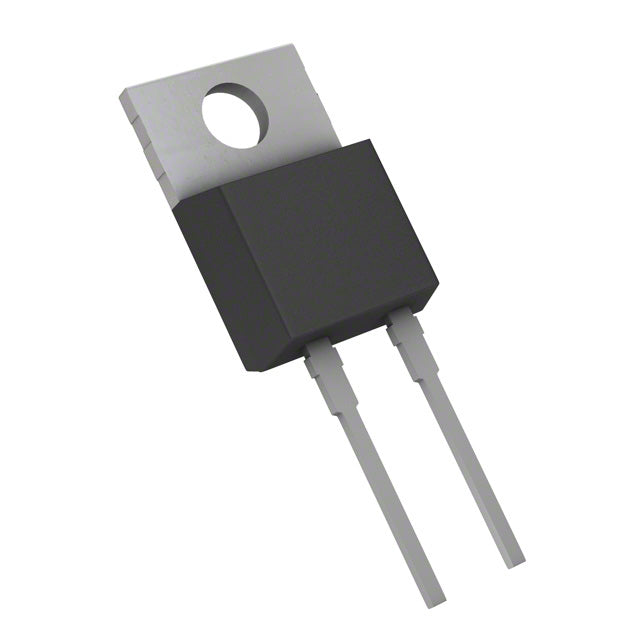

Schottky Rectifier Diode 150V 15A 2-lead

Schottky Rectifier Diode 150V 15A 2-lead

Regular price $3.75 USD
Regular price Sale price $3.75 USD
Sale Sold out
Option

Diode for keeping voltage off the charge connector port when charge/discharge wires are in a shared configuration. Or for other use cases where voltage needs to be blocked in one direction.

I recommend that all builders use diodes and heatsinks to protect the batteries, especially in cases where you have not adopted a unique charger wiring port.

Diode only is best for lid or controller box mounting, where the Diode + HeatSink can be strink wrapped and secured down inside the box. Personally I have been using the Diode + HeatSink and not bothering with lid or controller box mounts for it, but just use double sided 3M tape and apply a bit of hot glue in addition to ensure it doesn't move.

Technology: Schottky
Voltage - DC Reverse (Vr) (Max): 150 V
Current - Average Rectified (Io): 15A
Voltage - Forward (Vf) (Max) @ If: 860 mV @ 15 A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr: 1 mA @ 150 V
Capacitance @ Vr, F: 500pF @ 5V, 1MHz
Mounting Type: Through Hole
Package / Case: TO-220-2
Supplier Device Package: TO-220AC
Operating Temperature - Junction: -55°C ~ 175°C
