Minnie

Offline ride recordings even when your phone is not connected! It's like having a little black box onboard.

Ride recordings and audio announcements from your VESC™ controller made easy. You can have audio callouts for items such as: Duty Cycle, Speed, Battery Voltage, Motor Temp, Controller Temp, and more. The METR app makes it easy to view and share your ride data, such as the data shown in our blog post for the FLF6 mass race. This successor to the METR Pro includes a GPS module and built-in storage for storing your rides even when your phone is not connected. Phone must be connected for the Audio Callouts.

NOTE: For Little FOCer and some VESC™ controllers, you will need to split(re-pin) the CAN connector from the included 4-pin connected to 2x 2-Pin JST connectors. You can grab a couple from us here if you need them:
https://pevdispensary.com/products/jst-ph-2-0-receptacle

Description from Voyage Systems:

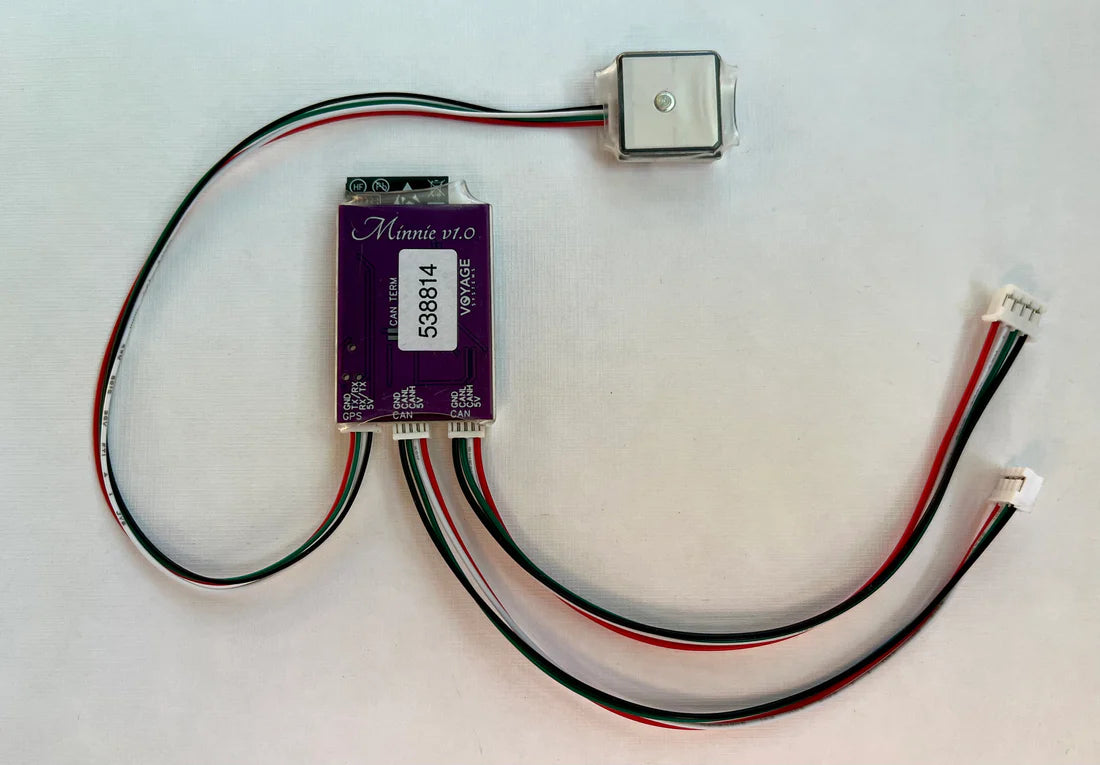

Minnie is a successor of the popular Metr Pro CAN module. It comes with the BE-180 GPS module and with 16 MB of built-in flash memory. Therefore, it does not require an SD card for offline ride logging. Logs can be automatically synced with cloud using the 2.4 GHz Wi-Fi. There are two CAN ports that allow daisy chaining. Minnie is compatible with the Metr mobile app as well as with the VESC Tool.

ESC compatibility

Minnie works with all VESC based controllers running the official VESC firmware version 3.48 or later. Legacy Unity firmware is not supported.

Hardware

• Dimensions 40mm x 28mm x 8mm
• 2x CAN bus port
• 16 MB flash memory
• Bluetooth 5 (low energy)
• 2.4 GHz, 802.11 b/g/n Wi-Fi
• BE-180 GPS module
• 2x JST GH to PH 150mm cable
• Optional external antenna

Features

• Compatible with iOS and Android
• Plug and play setup
• Up to 4WD realtime data
• Secure BLE with PIN code
• Over-the-air firmware updates
• Automatic CAN baud detection
• Supports 50K, 100K, 125K, 250K, 500K, 1M bauds
